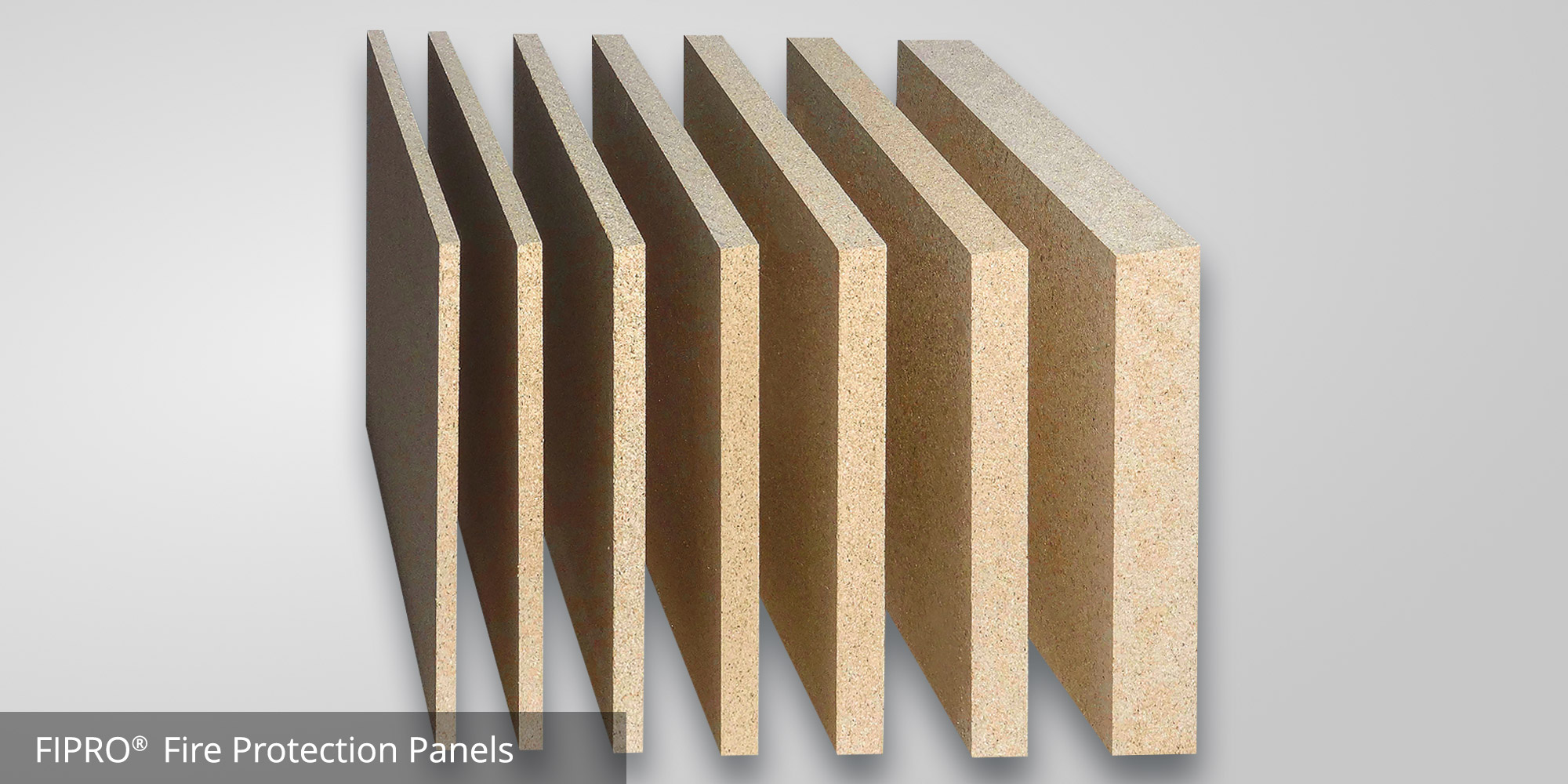

FIPRO®
Panel Type: Standard raw
PRODUCT DESCRIPTION:
FIPRO® is a non-combustible board with smooth surface and in large sizes. It is particularly easy and clean for processing. The surface of FIPRO® can be covered with many finishing materials.
APPLICATION AREAS:
FIPRO® non-combustible fire protection boards are used for A, B and C class constructions: bulkheads, ceilings, linings, floating floors, doors and furniture for ships and offshore platforms.
AVAILABLE ON REQUEST:
-
- Raw boards cut to special sizes
- Surface finish with laminates, wood veneers, wall coverings, etc.
- Bonded boards cut to size with edge bands in veneer, plastic or HPL
- Grooved edges
- Postformed edges
-
- CERTIFICATES
Technical specification*
| Reaction to fire (IMO Res. MSC 307(88) FTP(2010) | Non-combustible |
| Density | 800 kg/m³ (± 10%) |
| Standard dimension (mm) or on request | 2440 x 1220 | 2500 x 1250 | 2800 x 1250 | 3100 x 1250 |
| Tolerance in dimension | ± 1.0 mm |
| Standard thickness (mm) or on request | 8, 10, 12, 16, 19, 22, 25, 30, 32, 40, 50 |
| Tolerance in thickness | +0.3 / -0.2 mm |
| Bending strength (EN 12809 Var.B) | 4.0 MPa |
| Screw extraction surface and edge** (EN 320) | 250 N |
| Tensile strength (EN 319) | 0.3 MPa |
| Delamination strength (EN 311) | 0.8 MPa |
| Residual moisture (ex works) (EN 322) | 2 – 7 % |
* The shown values are always dependent on the particular density and provide minimum or average values of the production. Safety data sheet and manual are available on request. All technical data are due to changes and supplements.
** From thickness 15 mm on.
| Thickness (mm) | Weight kg/m2 | Quantity pcs/pallet | 2440 x 1220 mm | 2500 x 1250 mm | Quantity pcs/pallet | 2800 x 1250 mm | 3100 x 1250 mm |
|---|---|---|---|
| 8 | 6.8 | 100 | 86 |
| 10 | 8.3 | 80 | 69 |
| 12 | 9.8 | 67 | 58 |
| 16 | 12.6 | 53 | 46 |
| 19 | 15.0 | 49 | 42 |
| 22 | 17.2 | 42 | 36 |
| 25 | 19.5 | 37 | 32 |
| 30 | 23.1 | 31 | 26 |
| 32 | 24.6 | 29 | 24 |
| 40 | 29.6 | 23 | 20 |
| 50 | 37.0 | 18 | 16 |
