Approved Constructions

BULKHEADS

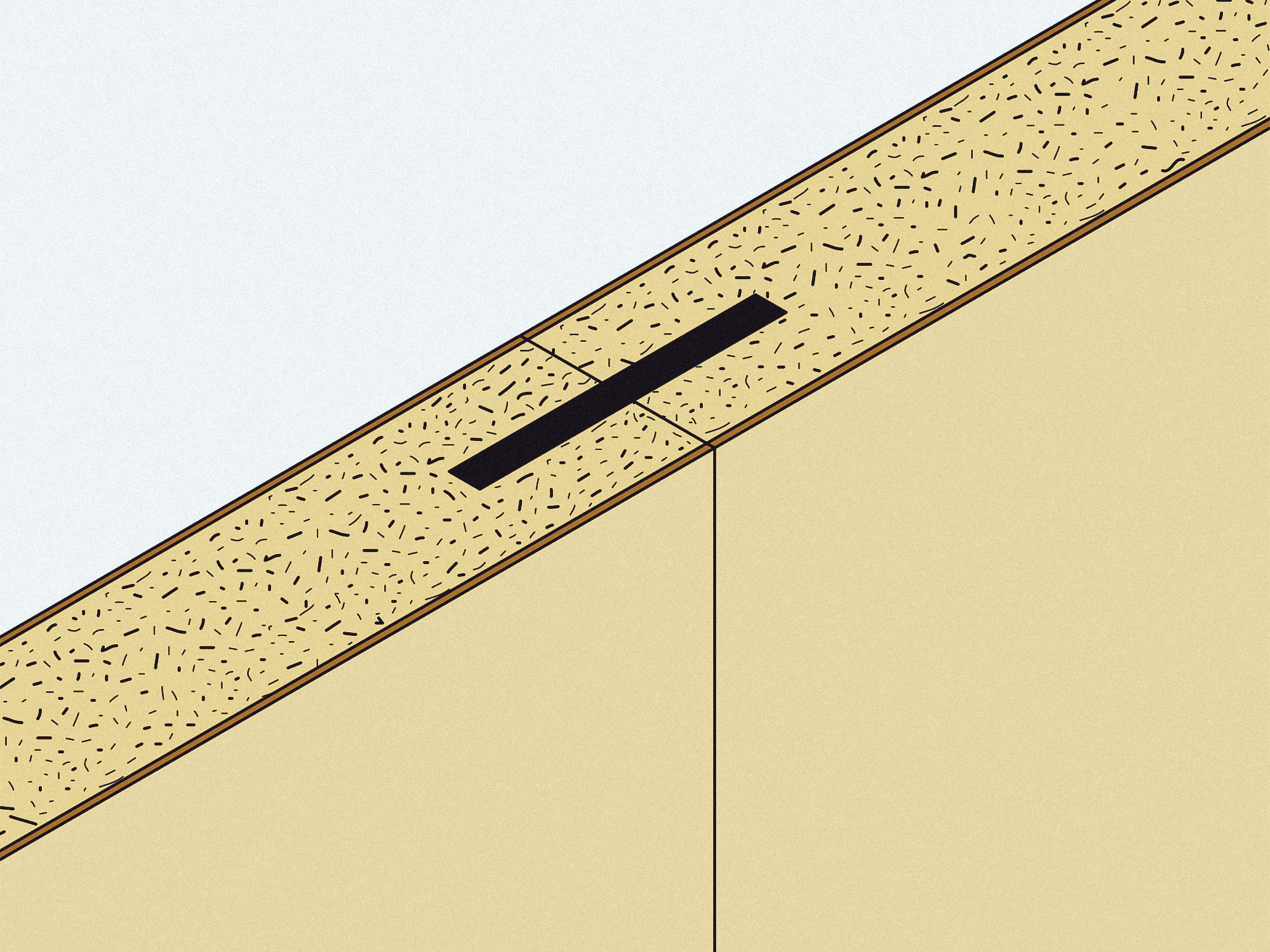

Steel Spline Joint

Steel spline

Requirement: B-0 Class

Material: FIPRO®
Thickness: 16 mm
Junction: steel spline
Construction: bulkhead
Sound reduction: 29 dB (estimated value)

Material: FIPRO®MS
Thickness: 16 mm
Junction: steel spline
Construction: bulkhead
Sound reduction: 29 dB (estimated value)

Requirement: B-15 Class

Material: FIPRO®
Thickness: 19 mm
Junction: steel spline
Construction: bulkhead
Sound reduction: 32 dB (estimated value)

Material: FIPRO® MS
Thickness: 19 mm
Junction: steel spline
Construction: bulkhead
Sound reduction: 32 dB (estimated value)

Requirement: A-15 Class

Material: FIPRO®
Thickness: 19 mm
Junction: steel spline
Construction:   bulkhead
Sound reduction: 32 dB (estimated value)

Material: FIPRO® MS
Thickness: 19 mm
Junction: steel spline
Construction:  bulkhead
Sound reduction: 32 dB (estimated value)

More joining sections see chapter Profiles.

Non-combustibility is one of the requirements for the use of interior construction panels in shipbuilding. This is tested in accordance with IMO Resolution A799 (19). FIPRO® has passed all tests and is approved by marine safety authorities and classification companies as a “non-combustible construction material”.
Extensive tests of bulkheads and claddings have been performed with FIPRO®. You can find a selection of approved designs in the following presentations. Certificates are available on request.
